Drain Plugs

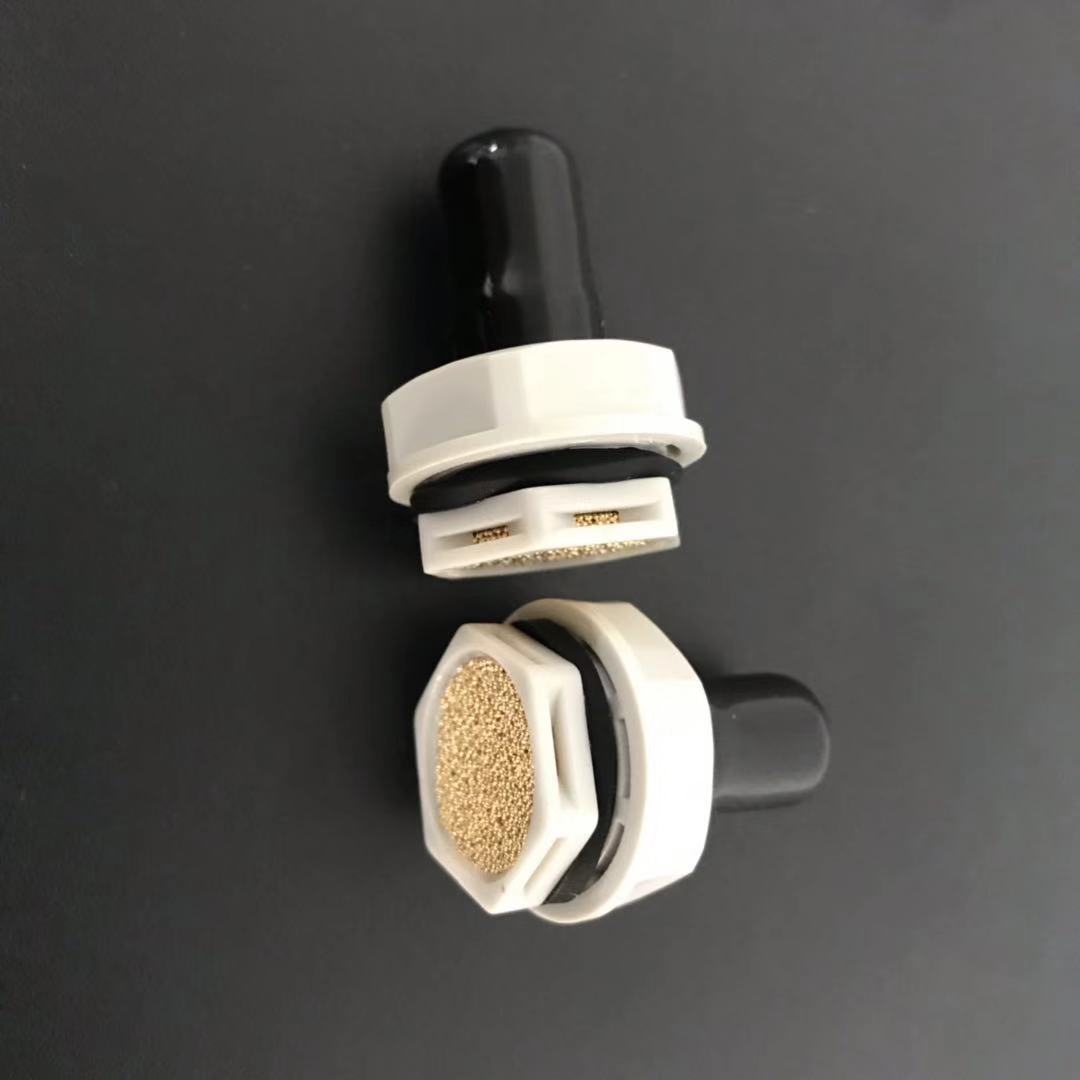

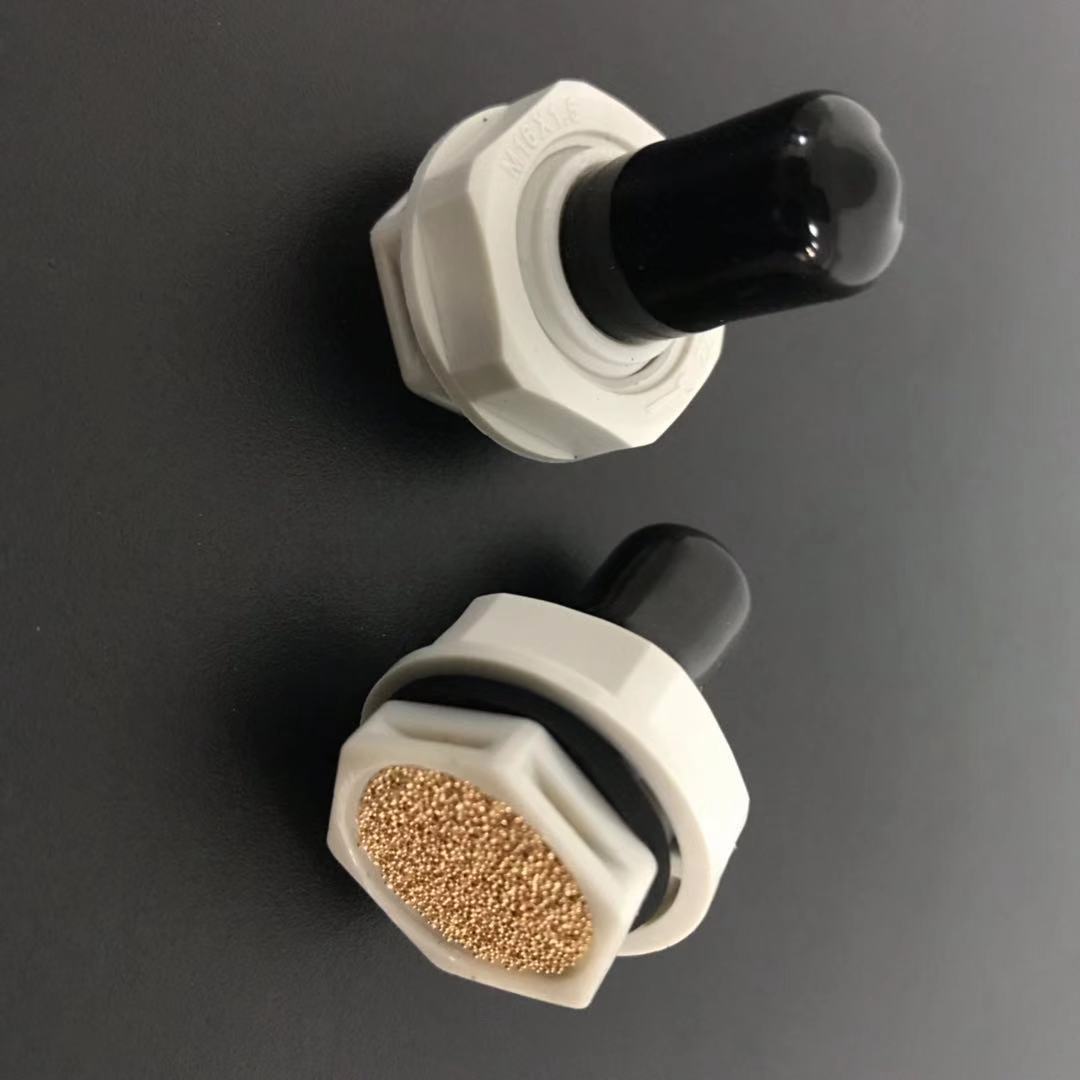

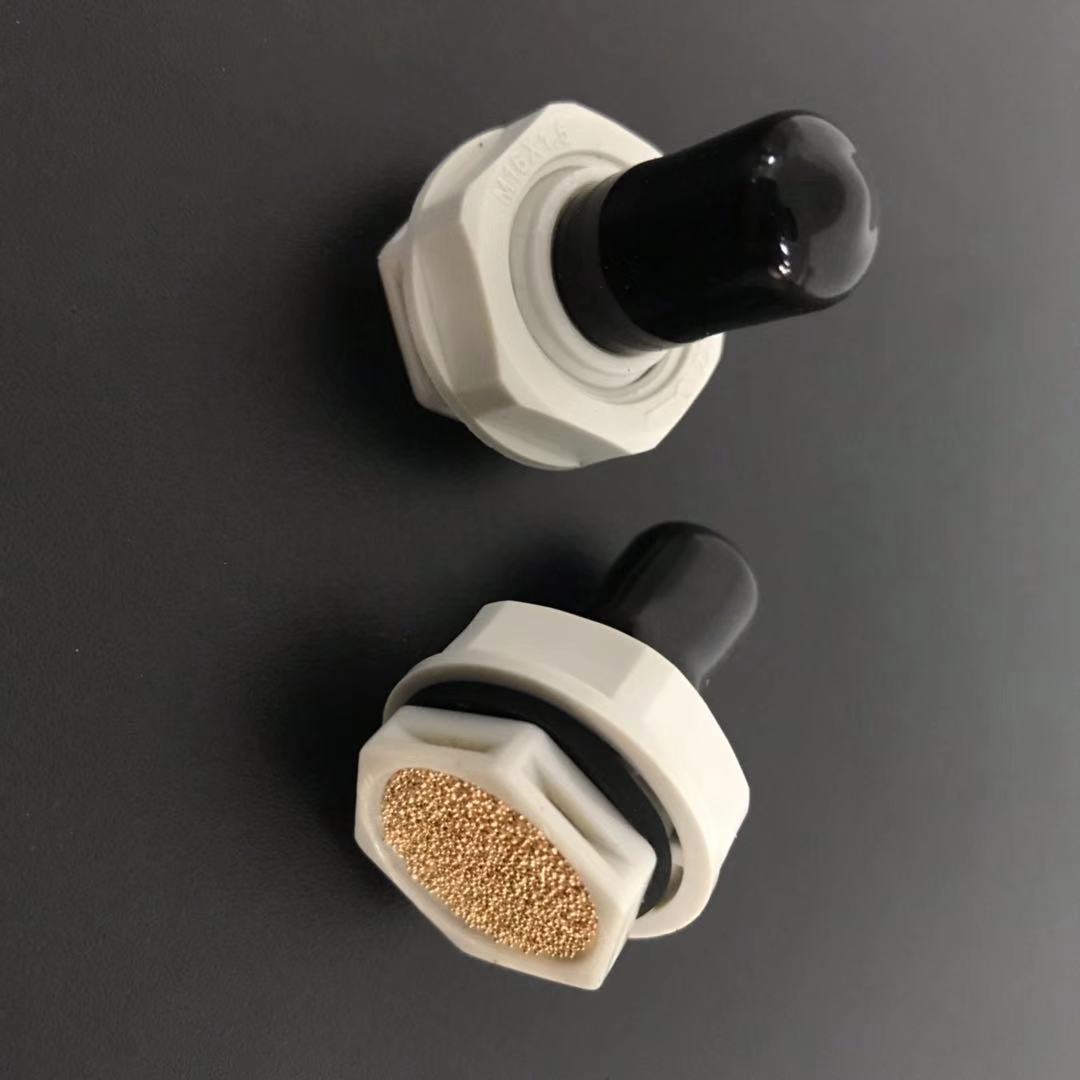

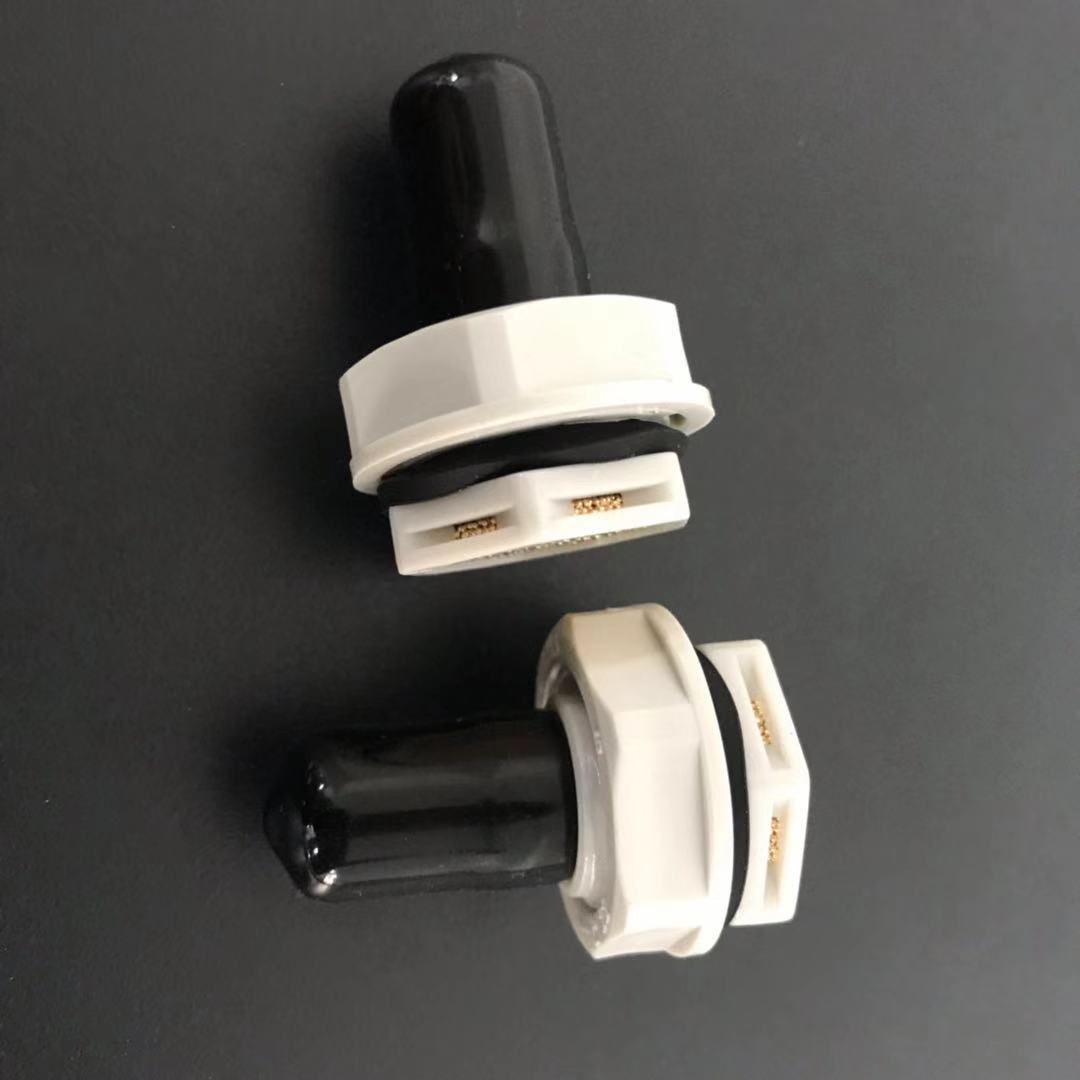

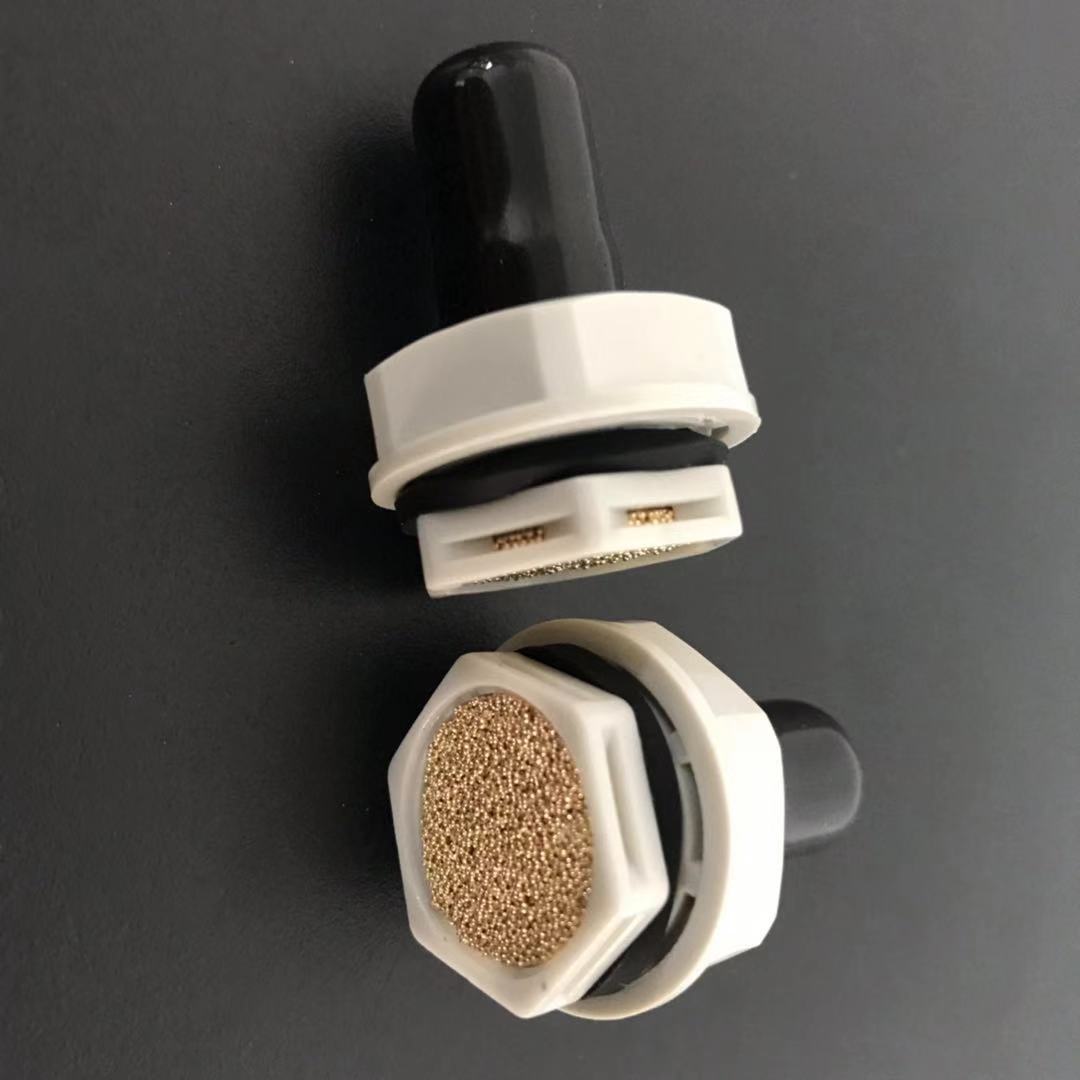

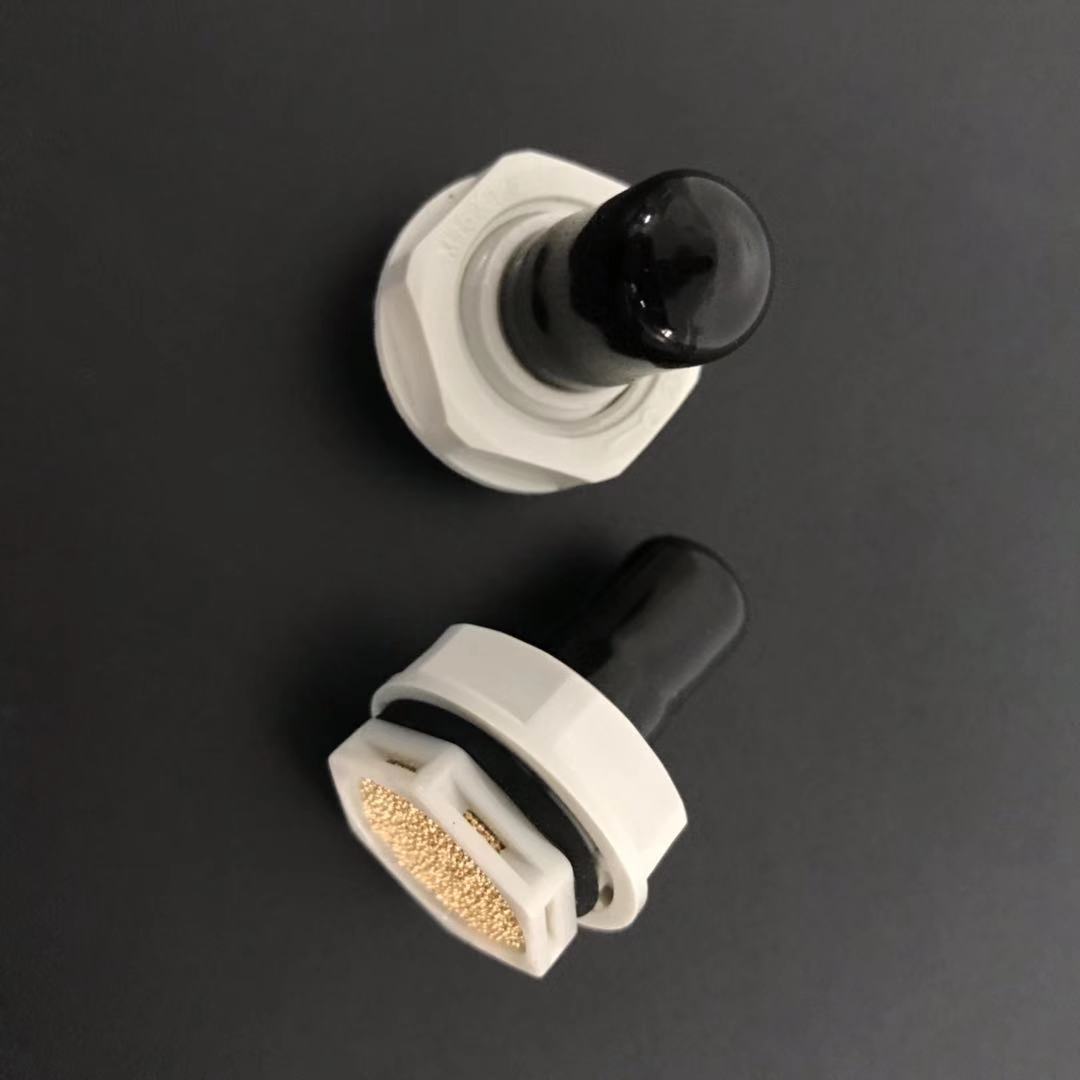

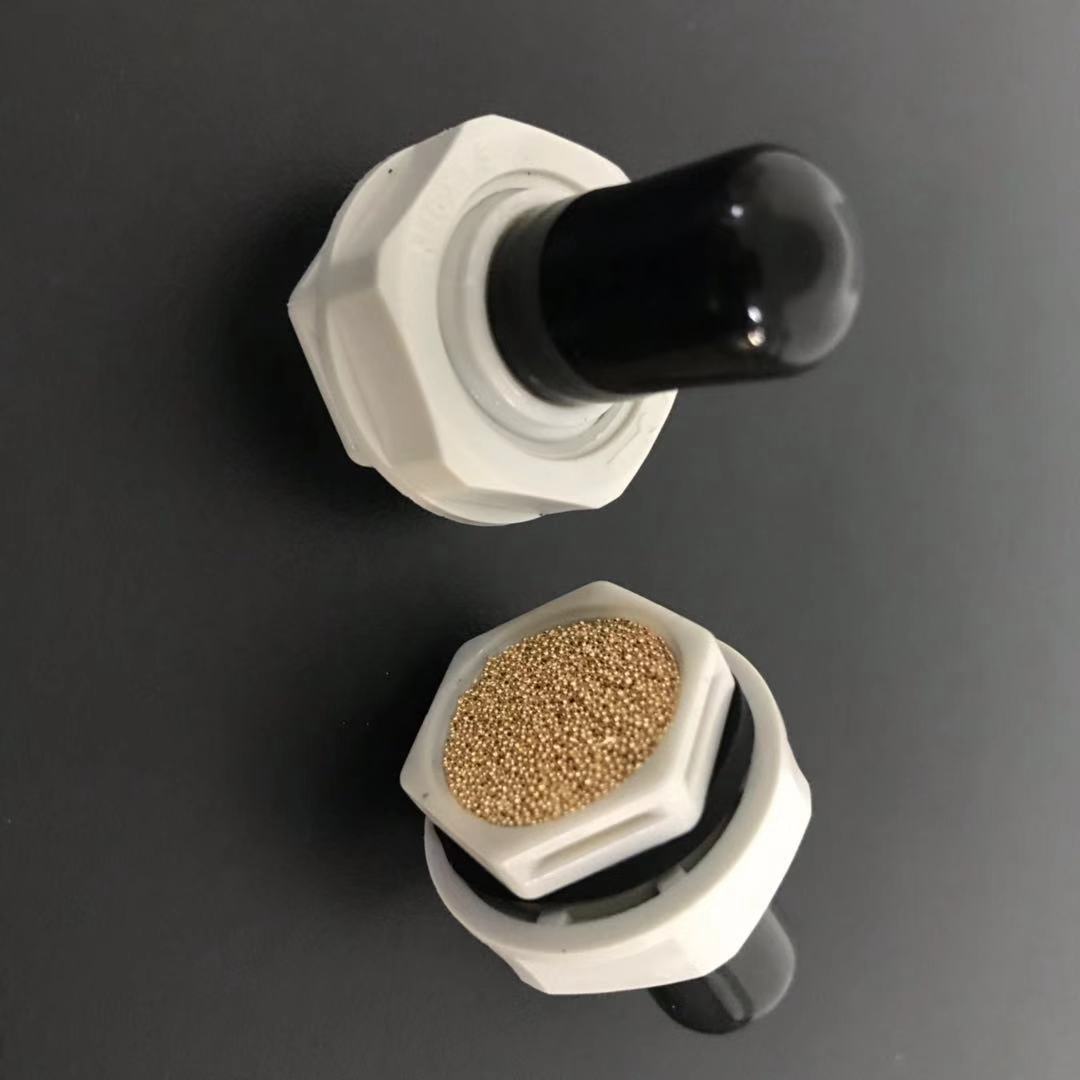

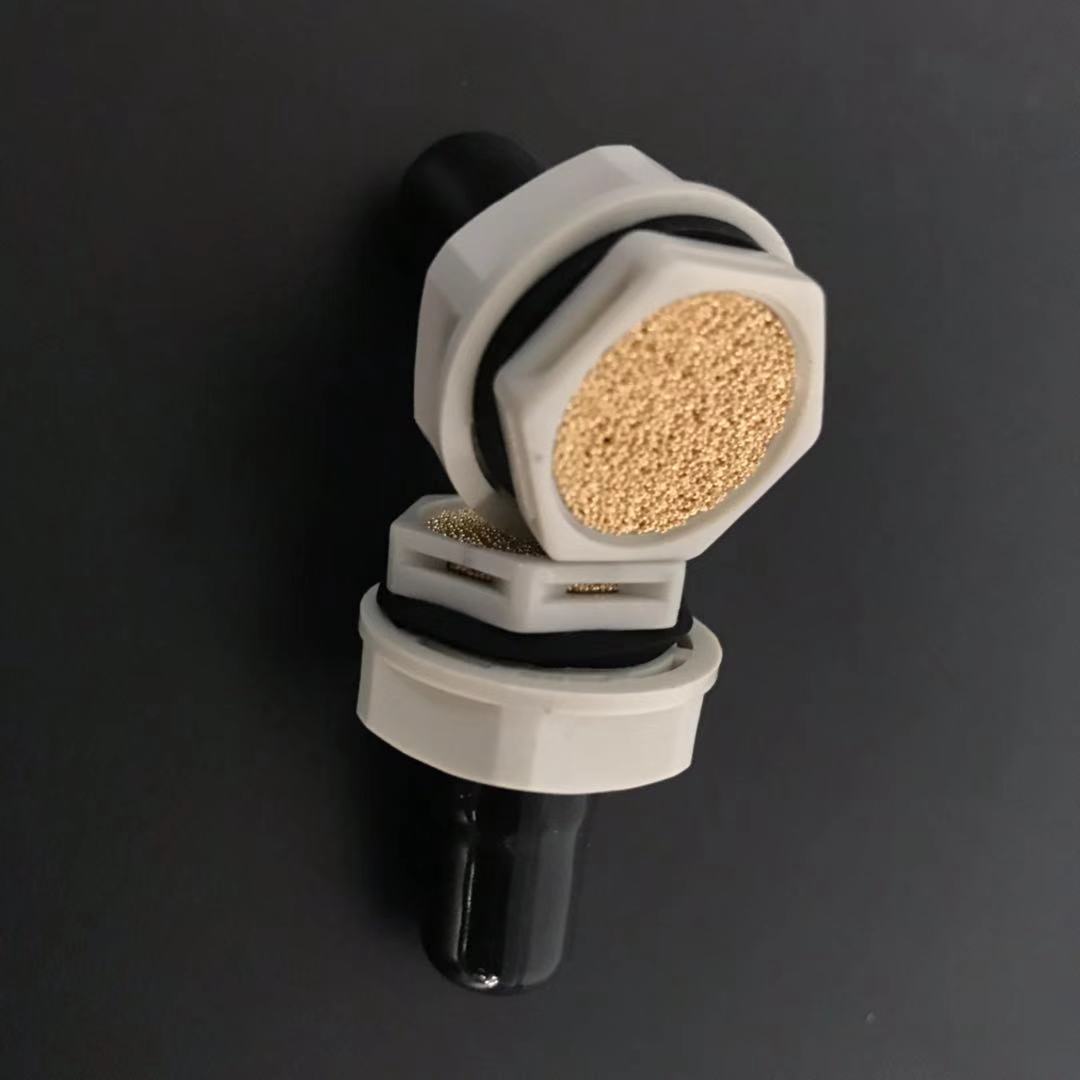

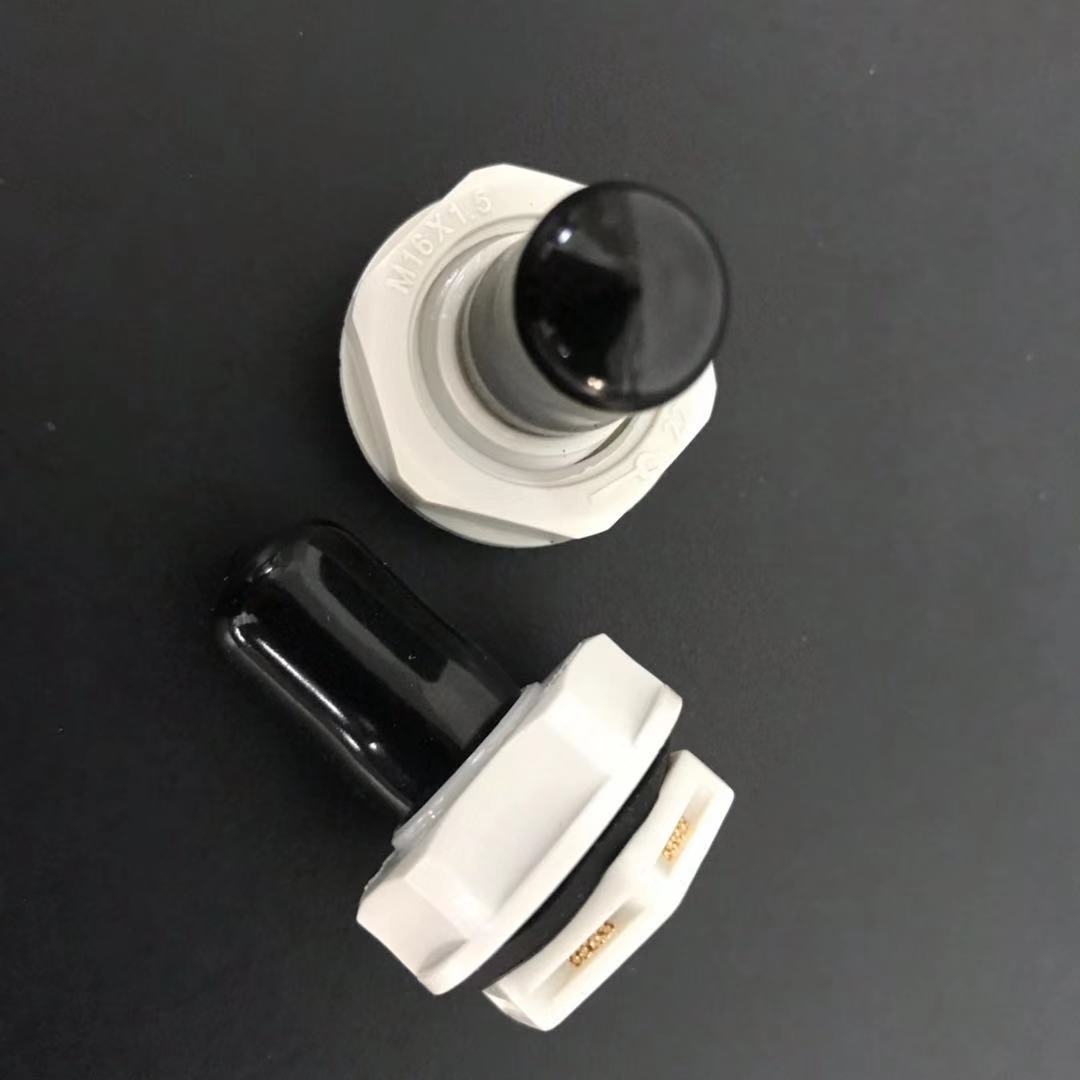

Drain Plugs Polyamide
M16x1,5
M20x1.5
• Balances pressure differences between inner housing and the outside environment.
• Prevents damages according to pressure differences.
• Prevents the formation of water condensation in tightly-sealed standard housings.
• Prevents water stay inside enclosure in case water go inside enclosure, the drain plug will help water leak out and keep enclosure dry.
Technical Details
| Material Body, Cap | PA6 |
|
| Ingress Protection Rating | IP 56 / IP 66 (Category 2) |
|
| Flammability | V2 according to UL94 |
|
| Operating Temperature | Permanent | Intermittent |
| -20 °C to +100 °C | -30 °C to +150 °C |
|
| Thread Type | Metric EN 60423 |
|
| Accessories | Lock nuts |
|
| Gaskets ( Washers ) |
|
|
| Remarks | We recommend the use of lock nuts and gaskets to ensure IP rating for - |
|
| rough surfaces or through holes. |
|
|
| Accessories must be ordered separately |
|
|
